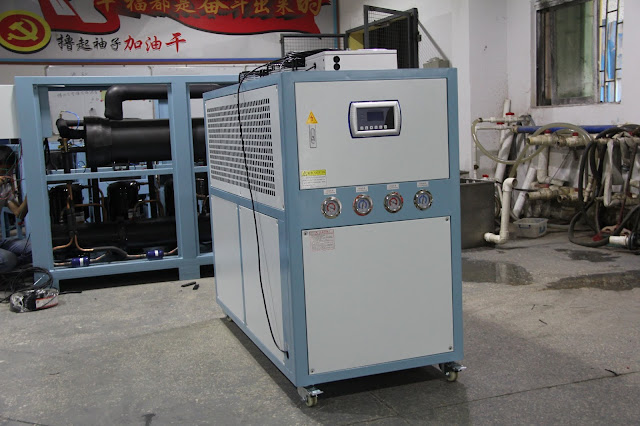

20ton air cooled chiller
Model
Item
|
LC-20A
|
Band
| |
Power supply
|
380V/3PH/50HZ
| ||
Nominal cooling capacity
|
Kcal/h
|
51420
| |
kw
|
60
| ||
Refrigerant
|
Name
|
R22(or R407C/R404A)
|
Import of high quality refrigerant
|
Control method
|
Thermostatic expansion valve
| ||
Compressor
|
Type
|
Scroll compressor
|
Copeland(America)
|
Power(HP)
|
10*2
| ||
Condenser
|
Type
|
Finned copper tube+low noise outer rotor fan
|
High efficiency Finned copper tube heat exchanger
|
Cooling air flow(m3/h)
|
23600
| ||
Power(kw)
|
0.7*2
| ||
Environment Temp(dissipate heat
|
≤45℃
| ||
Evaporator
|
Type
|
Water tank with coil
|
Water tank with coil
|
Chilled water flow (L/min)
|
360
| ||
Thank volume(L)
|
200
| ||
Inlet/out pipe caliber
|
2″
| ||
Water pump
|
Power(HP)
|
2
|
Muchuan
|
Lift(m)
|
17
| ||
Safety protection
|
Control pane
|
Compressor overheating
protection,over-current
protection,high and low
pressure protection,over temperature protection,
flow switch protection,phase sequence or missing phase
protection, exhaust overheating protection,antifreezing
protection.
|
Punp
|
High/low pressure gauge
|
JAVE(Taiwan)
| ||
Filter
|
ALCO(America)
| ||
Relay
|
Schneider(France)
| ||
Contactor
|
Schneider(France)
| ||
Power switch
|
Chint
| ||
Dimension
|
weight(kg)
|
840
|
Wooden case
|
LxWxH(mm)
|
1850*850*1750
| ||
Surface treatment
|
Mainboard :2mm, closingboard: 1.5mm
|
Baking varnish
| |

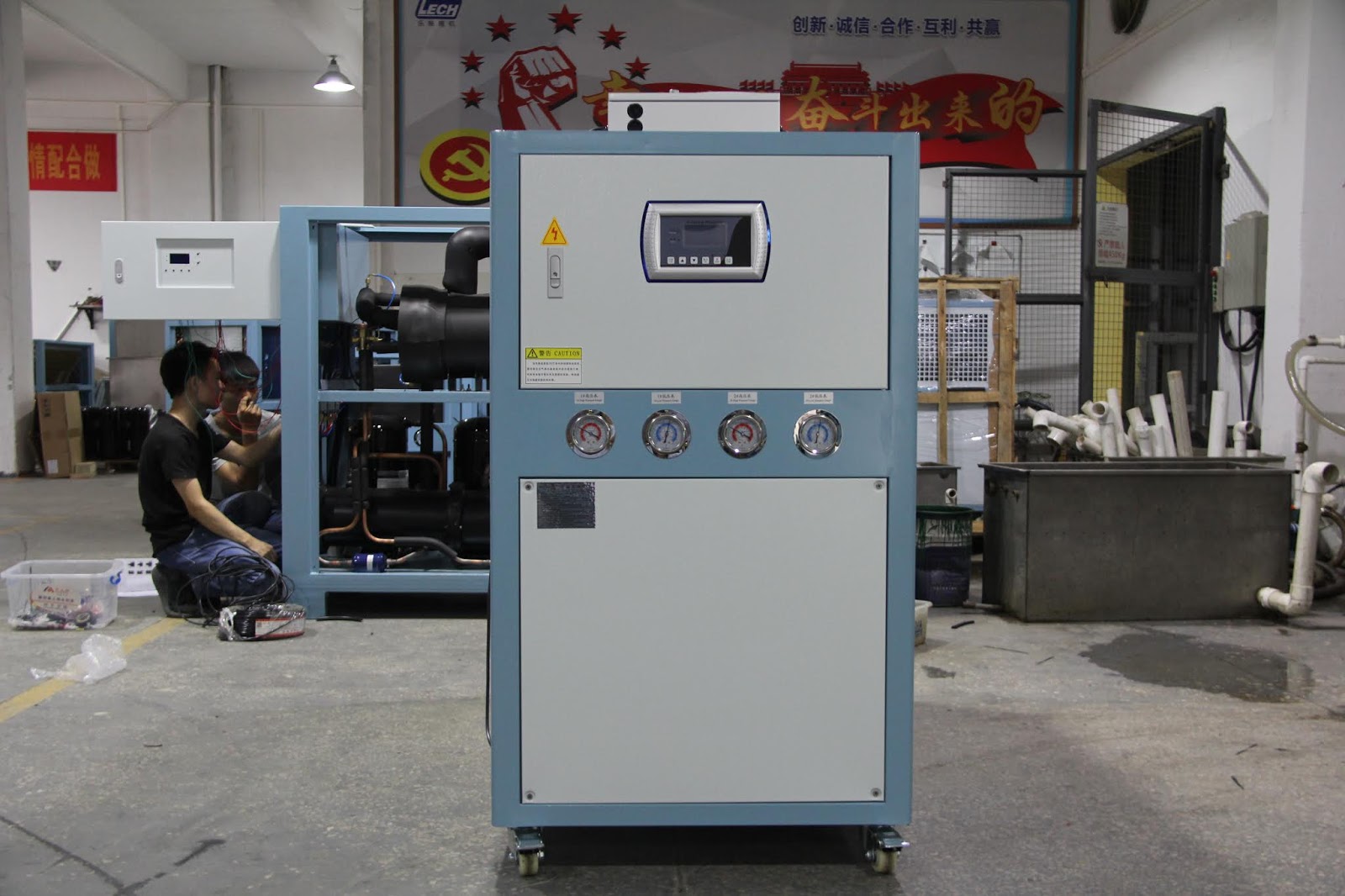

15ton air cooled chiller
Remark：1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
2.range of work：Chilled water(Temp range)：5℃-35℃；inlet and outlet water(temp range) ：3℃-8℃.working environment: ≤35℃（condensation Temp）
3.Conversion of units：1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW
Model
Item
|
LC-15A
|
Band
| |
Power supply
|
380V/3PH/50HZ
| ||
Nominal cooling capacity
|
Kcal/h
|
38565
| |
kw
|
45
| ||
Refrigerant
|
Name
|
R22(or R407C/R404A)
|
Import of high quality refrigerant
|
Control method
|
capillary
| ||
Compressor
|
Type
|
Scroll compressor
|
Panasonic(Japan)
|
Power(HP)
|
5*3
| ||
Condenser
|
Type
|
Finned copper tube+low noise outer rotor fan
|
High efficiency Finned copper tube heat exchanger
|
Cooling air flow(m3/h)
|
15240
| ||
power(kw)
|
0.38*2
| ||
Environment Temp(dissipate heat
|
≤45℃
| ||
Evaporator
|
Type
|
Water tank with coil
|
Water tank with coil
|
Chilled water flow (L/min)
|
360
| ||
Thank volume(L)
|
200
| ||
Inlet/out pipe caliber
|
2″
| ||
Water pump
|
Power(HP)
|
2
|
Muchuan
|
Lift(m)
|
17
| ||
Safety protection
|
Control pane
|
Compressor overheating
protection,over-current
protection,high and low
pressure protection,over temperature protection,
flow switch protection,phase sequence or missing phase
protection, exhaust overheating protection,antifreezing
protection.
|
Punp
|
High/low pressure gauge
|
JAVE(Taiwan)
| ||
Filter
|
ALCO(America)
| ||
Relay
|
Schneider(France)
| ||
Contactor
|
Schneider(France)
| ||
Power switch
|
Chint
| ||
Dimension
|
weight(kg)
|
650
|
Wooden case
|
LxWxH(mm)
|
1680*830*1670
| ||
Surface treatment
|
Mainboard :2mm, closingboard: 1.5mm
|
Baking varnish
| |
